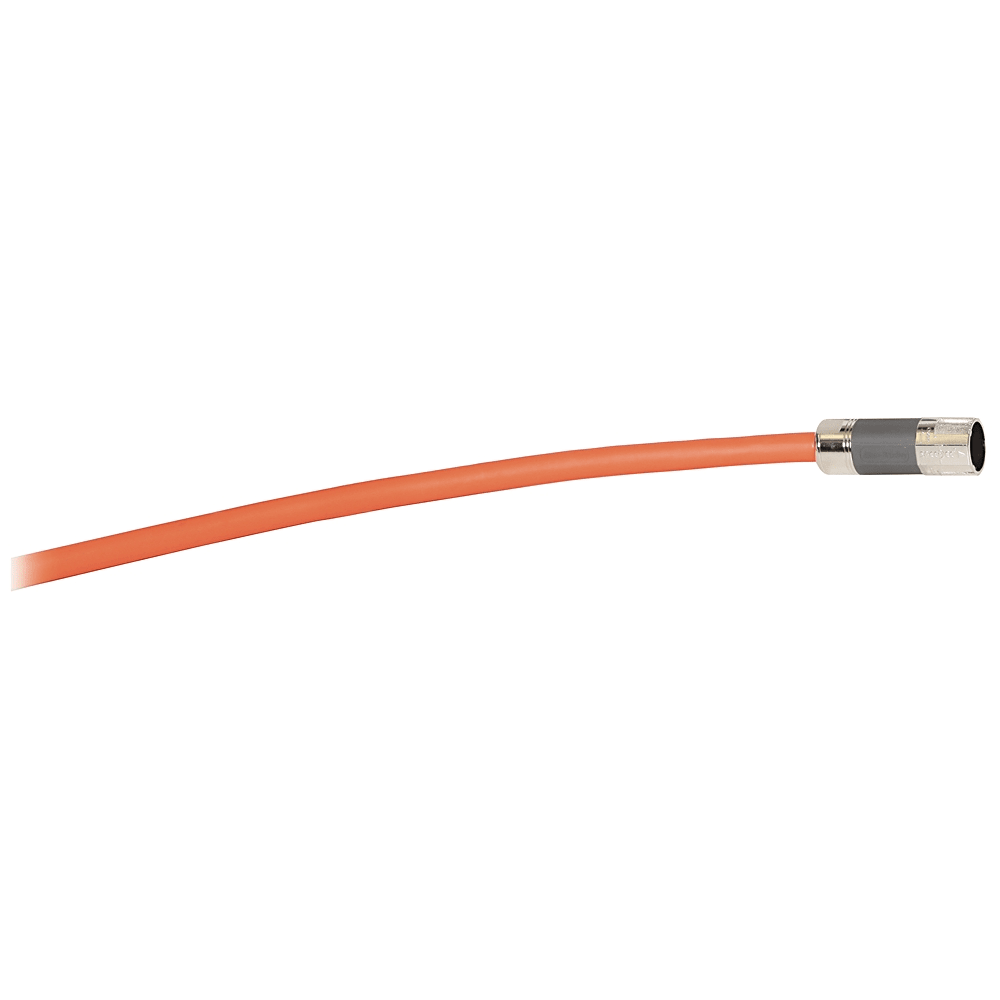

Allen-Bradley - Kinetix Cable Single DSL 2090 - 2090-CSWM1DF-14AA14

Kinetix 2090-series single motor cable. Single motor power cable type. Single SpeedTec DIN connector motor-end type. Drive-end, flying-lead connector type. 14 AWG wire gauge size. Standard, non-flex cable. Low capacitance design to maximize system power density. Cable construction permits power and signal conductors in a single cable. 1/4-turn SpeedTec connection system. Encoder communication data pair with state of the art noise rejection. DESINA compliant jacket (orange) colouring for easy identification and separation of cables in a machine. 1000 V hybrid cable with four power and two feedback (digital communication) conductors. Continuous-flex cables are suitable for 20 million flex-cycles in linear flexing applications and 10 million cycles in bending (tic-toc) applications. TPE jacket with superior mechanical and chemical properties. Cable features overall tinned copper braid with aluminium/polyester tape, delivering 100% coverage for excellent EMC/EMI performance.
