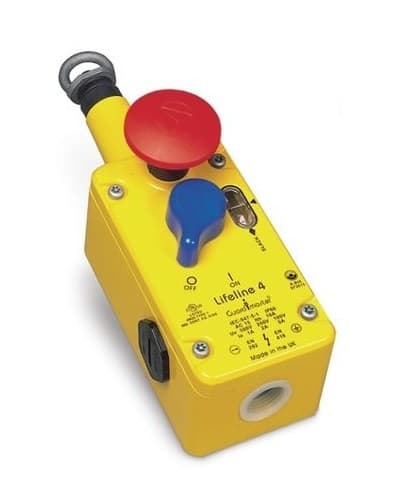

Guardmaster - Lifeline 4 Cable Pull Switch - 440E-L13141

440E Lifeline Emergency Cable Pull Switches - Lifeline 4 (< 75 meter span), With E-Stop, 12-Pin M23, 3 N.C. Safety & 1 N.O. Aux Contacts

• The positive mode mechanism helps ensure that the contacts are immediately latched open on actuation and can

• only be reset by the intentional action of turning the blue reset knob. The design also protects against nuisance

• tripping and the effects of thermal expansion.

• A mushroom head emergency stop button is included on the unit to provide E-stop access even at the extreme

• ends of the span.

• The cable status indicator makes the system easy to build and maintain for spans up to 125 m (410 ft).

• Four sets of contacts are provided: 2 N.C. + 2 N.O. or 3 N.O. + 1 N.O. contacts.

• Sealed to IP66 with rugged construction using die-cast alloy and stainless steel to withstand harsh conditions.

• Universal mounting and operation

• Switch lockout on cable pulled and cable slack

• Cable status indicator on switch lid
