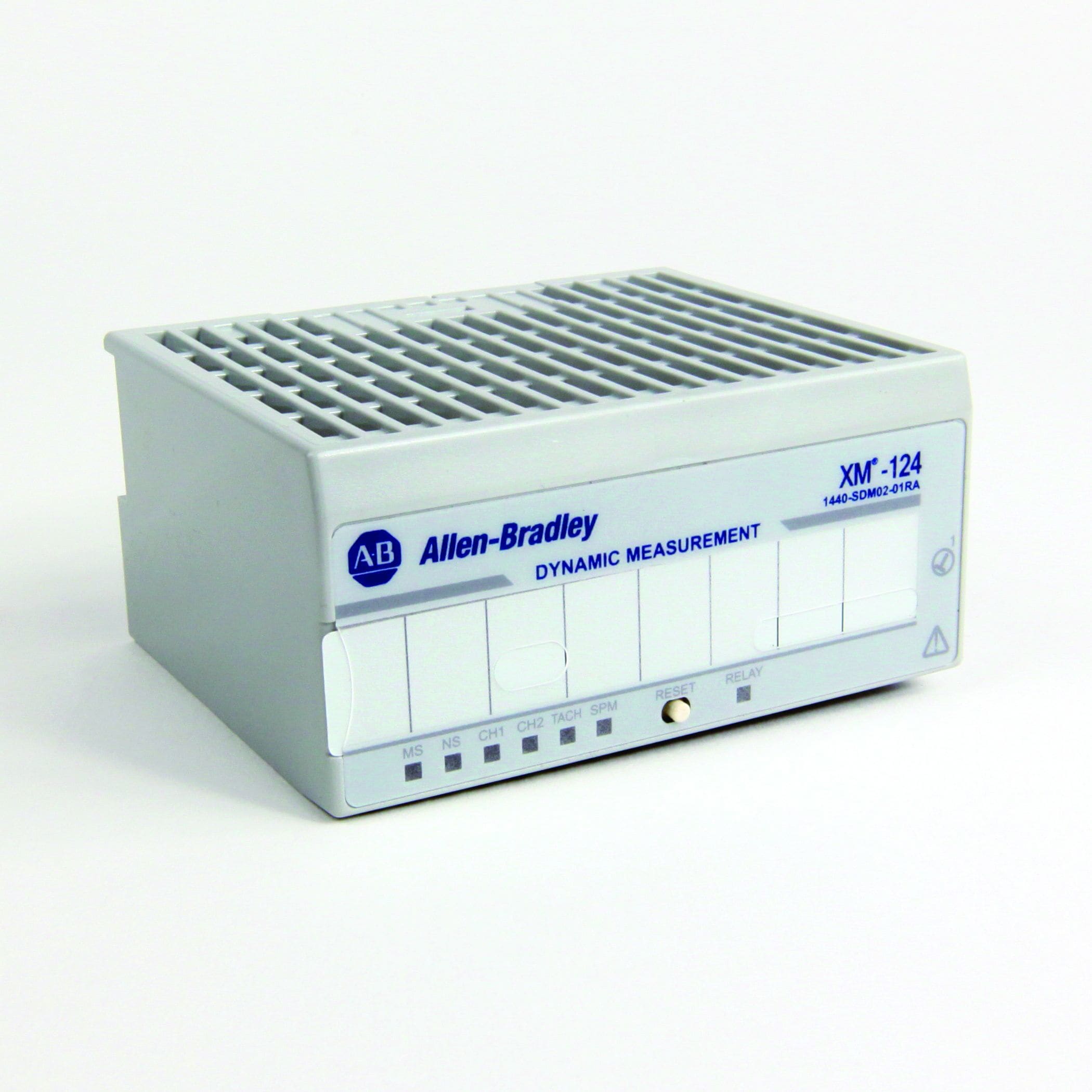

Allen-Bradley - XM-124 Standard Dynamic Measur - 1440-SDM02-01RA

XM-124 Standard Dynamic Measurement Module

• •Monitors 4 voltage and 4 current channels for every electrical cycle — 1024 data points across 8 channels every 12-17 milliseconds

• •Calculates over 6,000 parameters every cycle

• •Provides a second communication port

• •Includes native EtherNet/IP™ port

• •Includes 4 digital inputs for WAGES data collection

• •Includes 4 outputs for connection to SCADA or control systems

• •Offers configurable alarms for up to 20 events

• •Provides virtual wiring correction capability

• PowerMonitor 5000 Models

• M5 — base model

• M6 — includes base model features, plus:

• •Harmonics

• •Oscillography

• •Event Sync

• M8 — includes base model features, plus:

• •Harmonics

• •Oscillography

• •Event Sync

• •Flicker

• •Interharmonics

• •Transient Detect
